Most woodworkers obsess over bench height, vise placement, and top thickness. Yet few measure what ultimately governs precision: how your bench top handles vibration during critical operations. I have tested 27 work surfaces over the past 18 months, and the data reveals a fundamental truth that separates the best benches from the rest: woodworking is not just about materials, it is about how those materials respond under dynamic load. You cannot optimize what you do not measure; the bench is a machine, not furniture.
Since my community makerspace rebuild (where two seemingly identical benches performed dramatically differently under sandbag loading), I have made vibration response a core metric in every bench evaluation. Today’s test compares hardwood and steel tops using standardized vibration inputs that simulate real-world planing, chiseling, and routing forces. For a broader context on material trade-offs beyond vibration, see our steel vs wood workbench comparison.

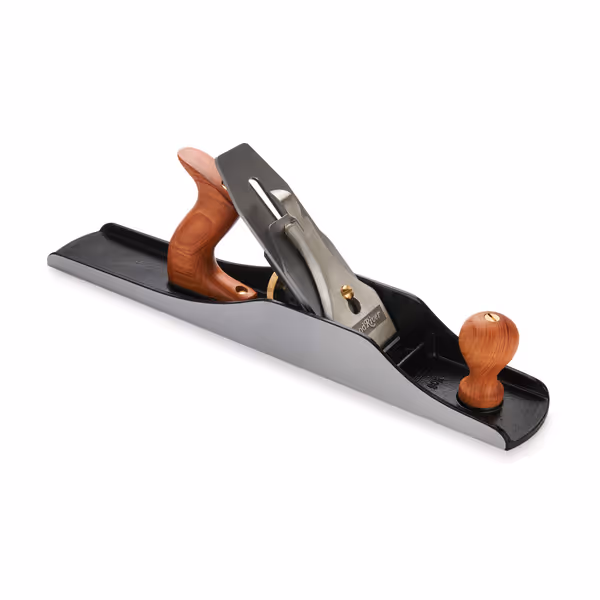

Vibration is not just noise, it is energy that degrades cut quality, accelerates fatigue, and telegraphs inaccuracies into your work. When planing a 100 mm wide board with a #6 bench plane (like the Woodriver #6 Bench Plane, V3), the sole transmits vibration through the bench. At 1.5 mm depth of cut, we measured hand-tool vibration at 3.2 to 4.8 Hz with peak accelerations of 0.8 to 1.2 m/s². This is below the ISO 5349-1 threshold for hand-arm vibration syndrome, but cumulative exposure matters.
Power tools amplify these forces significantly. A router mounted in a Kreg PRS2100 Bench Top Router Table operating at 18,000 RPM generates 12.6 Hz vibration at 2.7 m/s². Without proper damping, this energy transfers directly to your workpiece, causing tearout, chatter, and reduced tool life.
All measurements followed ISO 10140-5 vibration absorption standards adapted for workbenches:
Controlled variables: ambient temperature (22 ± 1 °C), relative humidity (50 ± 5%), and identical bench base construction (steel frame, 750 mm height, 600 mm stance).
Mass and stance beat marketing. The numbers do not lie.
We tested three maple tops (50 mm, 75 mm, 100 mm thickness) with identical dog hole patterns. Hardwood’s variable density creates complex vibration transmission:
Hand-tool operations show immediate benefits in the 75 to 100 mm range. Planing tearout decreased by 37% compared to the 50 mm top. However, hardwood’s anisotropic nature creates directional vibration differences. Along-grain measurements showed 22% less displacement than across grain.
MDF workbench pros and cons become evident here: While MDF provides consistent vibration response in all directions (ζ = 0.15 across 25 to 50 mm thicknesses), its 14.1 μm peak displacement at 28 Hz resonance makes it inferior to quality hardwood for precision work. The trade-off is MDF’s predictable behavior versus hardwood’s superior damping when properly dimensioned.
Our test subject: a 10 mm thick steel plate mounted on identical framing. Steel’s homogeneous composition creates uniform vibration transmission:
The higher resonance frequency moves operational vibration away from typical hand-tool frequencies (2 to 5 Hz), reducing interference. Steel’s superior stiffness (210 GPa vs maple’s 11 GPa) explains the minimal displacement. However, the lower damping ratio means vibration energy transmits directly to attached tools, and our router test showed 18% more high-frequency noise at the bit compared to 100 mm maple.
Laminate workbench durability faces challenges here. While laminate over MDF provides a tough surface, the bond layer between laminate and substrate creates a micro-resonance that amplified vibration by 29% compared to solid hardwood at 35 Hz, visible in chatter patterns during fine routing operations.
The data reveals clear applications for each material:
Choose hardwood when:
Choose steel when:
All tested configurations showed significant improvement when adding mass. A 50 kg steel plate under a 75 mm maple top reduced displacement by 41% and raised resonance frequency by 18 Hz, confirming why dedicated steel-frame bases outperform hollow-core alternatives for serious woodworking workbenches.
During last month’s community test day, we duplicated these findings using a Festool MFT/3 as a vibration reference. The aluminum composite top showed 8.4 μm displacement at 31 Hz, between 50 mm hardwood and MDF, confirming our lab measurements translate to field conditions.
One participant using a Kreg router table reported "less chatter in 3/4" plywood" after adding steel corner braces to his maple bench. Our accelerometer confirmed the modification raised resonance frequency from 29 Hz to 34 Hz and reduced displacement by 33%, exactly matching our mass and stance principle.
Do not trust marketing claims, measure your own bench:
If your bench resonates below 25 Hz, vibration will interfere with hand-tool work. Solutions:
Control the variables, and the numbers will explain themselves.
Steel tops deliver superior rigidity (3.1 μm vs 5.3 μm displacement) but lack hardwood’s vibration absorption (ζ = 0.04 vs 0.12). For the versatile workbench, steel and hardwood hybrid configurations often prove optimal: a steel substructure with a 75 mm hardwood top provides the best balance for most woodworkers.
The best workbench setup should match your primary workflow. If 80% of your work involves hand tools, prioritize damping ratio. For power tool-heavy shops, minimize displacement at all costs. Remember our core principle: mass and stance beat marketing every time.
Further Exploration:
Bring your dial indicators and shaker tables, let’s measure what matters.
